WpfDataGridFilter: Simplifying Server-side Filtering, Sorting and Paginating in a WPF DataGrid

"I just want to filter some data in a DataGrid, why is all this so complicated?"... said everyone using a WPF DataGrid.

So I have written WpfDataGridFilter, which is a small library to simplify server-side filtering, pagination and sorting in a WPF DataGrid. It works by using a custom DataGridColumnHeader template and comes with its own Pagination control and filtering infrastructure.

All code can be found in a Git repository at:

https://github.com/bytefish/WpfDataGridFilter

The Problem

The WPF DataGrid control is a powerful component, but it lacks very basic features, such as filtering and pagination for data. And while it's somewhat easy to add client-side sorting and filtering using a CollectionViewSource, doing server-side processing required all kinds of hacks.

I have a week off, so I have written a small library to make it easier.

What we are going to build

The idea is to provide a custom DataGridColumnHeader control, that enables us to filter the content in a DataGrid column:

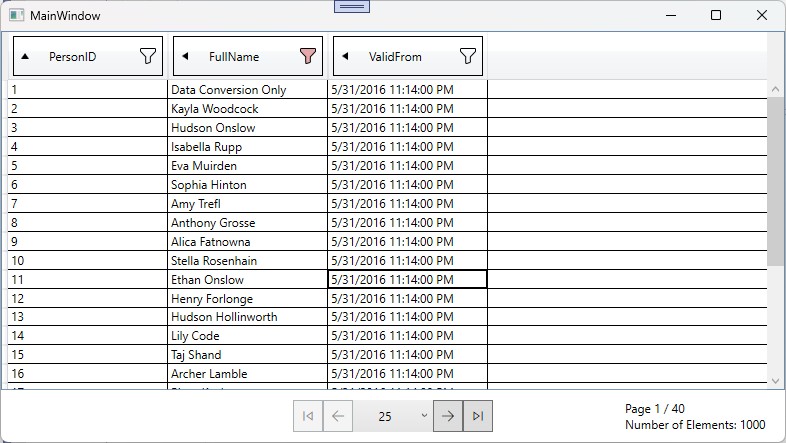

The Filter Symbol turns red for filtered columns.

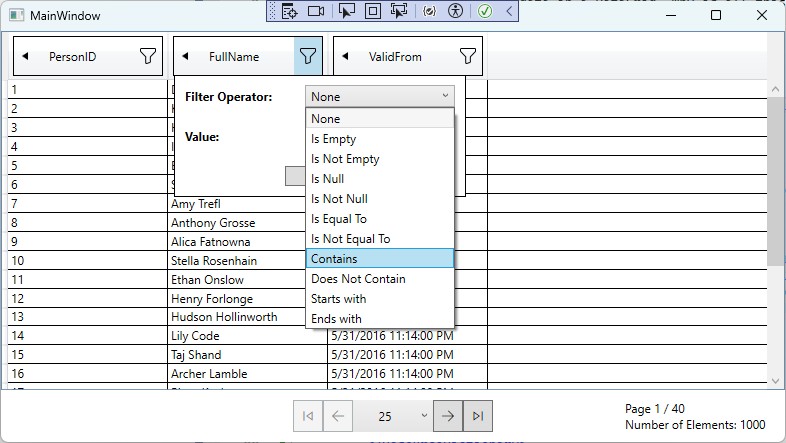

If you click on the Filter Symbol in the DataGrid Header, a Popup with a Filter Control is shown:

The Filter Controls support several Filter Operators, based on their Type. For a StringFilter, it looks like this:

Using It

You start by adding the WpfDataGridFilter to your project using the NuGet package:

dotnet package add WpfDataGridFilter

And you should also add the Dynamic LINQ Plugin to simplify working with data:

dotnet package add WpfDataGridFilter.DynamicLinq

Built-in the following filter types for a column are supported:

BooleanFilter
DateTimeFilter
IntNumericFilter
DoubleNumericFilter
StringFilter

The core concept to understand is the notion of a DataGridState, which holds the entire state for your Data Grid. This includes pagination information, filters and the sort column. We can register to DataGridState changes and query the data on changes.

So imagine, we are building a small application for filtering people. To have some anonymized data, we'll load it from a CSV file, distributed with the repository:

using System.IO;

namespace WpfDataGridFilter.Example.Models;

public class Person
{
    public required int PersonID { get; set; }

    public required string FullName { get; set; }

    public required string PreferredName { get; set; }

    public required string SearchName { get; set; }

    public required string IsPermittedToLogon { get; set; }

    public required string? LogonName { get; set; }

    public required bool IsExternalLogonProvider { get; set; }

    public required bool IsSystemUser { get; set; }

    public required bool IsEmployee { get; set; }

    public required bool IsSalesperson { get; set; }

    public required string? PhoneNumber { get; set; }

    public required string? FaxNumber { get; set; }

    public required string? EmailAddress { get; set; }

    public required DateTime ValidFrom { get; set; }

    public required DateTime ValidTo { get; set; }
}

public static class MockData
{
    /// <summary>
    /// Mock Data File Path.
    /// </summary>
    public static readonly string CsvFilename = Path.Combine(AppContext.BaseDirectory, "Assets", "people.csv");

    /// <summary>
    /// Mock Data.
    /// </summary>
    public static List<Person> People = CsvReader.GetFromFile(CsvFilename);
}

public static class CsvReader
{
    public static List<Person> GetFromFile(string path)
    {
        return File.ReadLines(path)
            .Skip(1) // Skip Header
            .Select(x => x.Split(',')) // Split into Components
            .Select(x => Convert(x)) // Convert to the C# class
            .ToList();
    }

    public static Person Convert(string[] values)
    {
        return new Person
        {
            PersonID = int.Parse(values[0]),
            FullName = values[1],
            PreferredName = values[2],
            SearchName = values[3],
            IsPermittedToLogon = values[4],
            LogonName = values[5],
            IsExternalLogonProvider = int.Parse(values[6]) == 1 ? true : false,
            IsSystemUser = int.Parse(values[7]) == 1 ? true : false,
            IsEmployee = int.Parse(values[8]) == 1 ? true : false,
            IsSalesperson = int.Parse(values[9]) == 1 ? true : false,
            PhoneNumber = values[10],
            FaxNumber = values[11],
            EmailAddress = values[12],
            ValidFrom = DateTime.Parse(values[13]),
            ValidTo = DateTime.Parse(values[14]),
        };
    }
}

Then in the App.xaml you are adding the Resources for the Control Styles:

<Application x:Class="WpfDataGridFilter.Example.App"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:local="clr-namespace:WpfDataGridFilter.Example"
             xmlns:wpfdatagridfilter="clr-namespace:WpfDataGridFilter.Controls;assembly=WpfDataGridFilter"
             StartupUri="MainWindow.xaml">
    <Application.Resources>
        <ResourceDictionary>
            <ResourceDictionary.MergedDictionaries>
                <ResourceDictionary Source="pack://application:,,,/WpfDataGridFilter;component/WpfDataGridFilter.xaml" />
                <ResourceDictionary Source="pack://application:,,,/WpfDataGridFilter;component/Theme/Light.xaml" />
            </ResourceDictionary.MergedDictionaries>
        </ResourceDictionary>
    </Application.Resources>
</Application>

To add a Filter Header for the FullName for the FullName Property, we just need to add a FilterableColumnHeader like this:

<Window x:Name="MainWindowRoot">
    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition Height="*" />
            <RowDefinition Height="Auto" />
        </Grid.RowDefinitions>
        <DataGrid ItemsSource="{Binding ViewModel.People}" AutoGenerateColumns="False" CanUserSortColumns="False" MinColumnWidth="150">
            <DataGrid.Columns>
                <DataGridTextColumn Binding="{Binding PersonID}">
                    <DataGridTextColumn.HeaderTemplate>
                        <ItemContainerTemplate>
                            <wpfdatagridfilter:FilterableColumnHeader
                                DataGridState="{Binding ViewModel.DataGridState, ElementName=MainWindowRoot}"
                                HeaderText="PersonID"
                                PropertyName="PersonID"
                                Height="40"
                                MinWidth="150"
                                FilterType="IntNumericFilter" />
                        </ItemContainerTemplate>
                    </DataGridTextColumn.HeaderTemplate>
                </DataGridTextColumn>
            </DataGrid.Columns>
        </DataGrid>
    </Grid>
</Window>

In the Code-Behind we are creating a View Model and pass a new DataGridState to it:

using System.Windows;

namespace WpfDataGridFilter.Example;

/// <summary>
/// Interaction logic for MainWindow.xaml
/// </summary>
public partial class MainWindow : Window
{
    public MainWindowViewModel ViewModel { get; set; }

    public MainWindow()
    {
        ViewModel = new MainWindowViewModel(new DataGridState([]));
        DataContext = this;

        InitializeComponent();
    }

    private void Window_Loaded(object sender, RoutedEventArgs e)
    {
        ViewModel.OnLoaded();
    }

    private void Window_Unloaded(object sender, RoutedEventArgs e)
    {
        ViewModel.OnUnloaded();
    }
}

And in the View Model we can register to the DataGridStateChanged event and refresh the data accordingly. The full example also shows how to add pagination, this code-snippet shows the most basic use-case:

using CommunityToolkit.Mvvm.ComponentModel;
using CommunityToolkit.Mvvm.Input;
using System.Collections.ObjectModel;
using System.Windows.Threading;
using WpfDataGridFilter.DynamicLinq;
using WpfDataGridFilter.Example.Models;

namespace WpfDataGridFilter.Example;

public partial class MainWindowViewModel : ObservableObject
{
    [ObservableProperty]
    private ObservableCollection<Person> _people;

    [ObservableProperty]
    private DataGridState _dataGridState;

    // ...

    public void OnLoaded()
    {
        DataGridState.DataGridStateChanged += DataGridState_DataGridStateChanged;
    }

    public void OnUnloaded()
    {
        DataGridState.DataGridStateChanged -= DataGridState_DataGridStateChanged;
    }

    private async void DataGridState_DataGridStateChanged(object? sender, DataGridStateChangedEventArgs e)
    {
        await Dispatcher.CurrentDispatcher.InvokeAsync(async () =>
        {
            await Refresh();
        });
    }

    public MainWindowViewModel(DataGridState dataGridState)
    {
        DataGridState = dataGridState;

        People = new ObservableCollection<Person>([]);
    }

    public async Task Refresh()
    {
        await Dispatcher.CurrentDispatcher.InvokeAsync(() =>
        {
            // Pagination, ...

            List<Person> filteredResult = MockData.People
                    .AsQueryable()
                    .ApplyDataGridState(DataGridState)
                    .ToList();

            People = new ObservableCollection<Person>(filteredResult);
        });
    }
}

And that's it!

Adding Pagination

Something that almost always comes up is some sort of Pagination. You could use the PaginationControl coming with the library.

Here is the XAML, that shows how to use the PaginationControl in a MVVM application:

<Window x:Class="WpfDataGridFilter.Example.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WpfDataGridFilter.Example"
        xmlns:wpfdatagridfilter="clr-namespace:WpfDataGridFilter.Controls;assembly=WpfDataGridFilter"
        xmlns:models="clr-namespace:WpfDataGridFilter.Example.Models"
        mc:Ignorable="d"
        Loaded="Window_Loaded"
        Unloaded="Window_Unloaded"
        Title="MainWindow" Height="450" Width="800"
        x:Name="MainWindowRoot">
    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition Height="*" />
            <RowDefinition Height="Auto" />
        </Grid.RowDefinitions>
        <DataGrid ItemsSource="{Binding ViewModel.People}" AutoGenerateColumns="False" CanUserSortColumns="False" MinColumnWidth="150">
            <DataGrid.Columns>
                <DataGridTextColumn Binding="{Binding PersonID}">
                    <DataGridTextColumn.HeaderTemplate>
                        <ItemContainerTemplate>
                            <wpfdatagridfilter:FilterableColumnHeader DataGridState="{Binding ViewModel.DataGridState, ElementName=MainWindowRoot}" HeaderText="PersonID" PropertyName="PersonID" Height="40" MinWidth="150" FilterType="IntNumericFilter"></wpfdatagridfilter:FilterableColumnHeader>
                        </ItemContainerTemplate>
                    </DataGridTextColumn.HeaderTemplate>
                </DataGridTextColumn>
            </DataGrid.Columns>
        </DataGrid>
        <Grid Grid.Row="1" Margin="10">
            <Grid.ColumnDefinitions>
                <ColumnDefinition Width="*" />
            </Grid.ColumnDefinitions>

            <wpfdatagridfilter:PaginationControl
                Grid.Column="0"
                HorizontalAlignment="Center"
                SelectedPageSize="{Binding ViewModel.PageSize, Mode=TwoWay}"
                PageSizes="{Binding ViewModel.PageSizes}"
                CurrentPage="{Binding ViewModel.CurrentPage}"
                FirstPage="{Binding ViewModel.FirstPageCommand}"
                PreviousPage="{Binding ViewModel.PreviousPageCommand}"
                NextPage="{Binding ViewModel.NextPageCommand}"
                LastPage="{Binding ViewModel.LastPageCommand}" />

            <TextBlock Width="150" Grid.Column="0"  HorizontalAlignment="Right">
                <Run Text="Page" />
                <Run Text="{Binding ViewModel.CurrentPage, Mode=OneWay}" d:Text="0" />
                <Run Text="/" />
                <Run Text="{Binding ViewModel.LastPage, Mode=OneWay}" d:Text="0" />
                <LineBreak />
                <Run Text="Number of Elements:"></Run>
                <Run Text="{Binding ViewModel.TotalItemCount, Mode=OneWay}" d:Text="1020" />
            </TextBlock>
        </Grid>
    </Grid>
</Window>

And in the Code-Behind you can see, how we could use the DataGridState and the PaginationControl for requesting paginated data:

using CommunityToolkit.Mvvm.ComponentModel;
using CommunityToolkit.Mvvm.Input;
using System.Collections.ObjectModel;
using System.Windows.Threading;
using WpfDataGridFilter.DynamicLinq;
using WpfDataGridFilter.Example.Models;

namespace WpfDataGridFilter.Example;

public partial class MainWindowViewModel : ObservableObject
{
    [ObservableProperty]
    private ObservableCollection<Person> _people;

    [ObservableProperty]
    private DataGridState _dataGridState;

    [ObservableProperty]
    public int _currentPage = 1;

    public int LastPage => ((TotalItemCount - 1) / PageSize) + 1;

    [ObservableProperty]
    [NotifyPropertyChangedFor(nameof(LastPage))]
    private int _totalItemCount;

    [ObservableProperty]
    private List<int> _pageSizes = new() { 10, 25, 50, 100, 250 };

    private int _pageSize = 25;

    public int PageSize
    {
        get => _pageSize;
        set
        {
            if(SetProperty(ref _pageSize, value))
            {
                // We could also calculate the page, that contains
                // the current element, but it's better to just set
                // it to 1 I think.
                CurrentPage = 1;

                // The Last Page has changed, so we can update the
                // UI. The Last Page is also used to determine the
                // bounds.
                OnPropertyChanged(nameof(LastPage));

                // Update the Page.
                SetSkipTop();
            }
        }
    }

    public IRelayCommand FirstPageCommand { get; }

    public IRelayCommand PreviousPageCommand { get; }

    public IRelayCommand NextPageCommand { get; }

    public IRelayCommand LastPageCommand { get; }

    public void OnLoaded()
    {
        DataGridState.DataGridStateChanged += DataGridState_DataGridStateChanged;

        SetSkipTop();
    }

    public void OnUnloaded()
    {
        DataGridState.DataGridStateChanged -= DataGridState_DataGridStateChanged;
    }

    private async void DataGridState_DataGridStateChanged(object? sender, DataGridStateChangedEventArgs e)
    {
        await Dispatcher.CurrentDispatcher.InvokeAsync(async () =>
        {
            await Refresh();
        });
    }

    public MainWindowViewModel(DataGridState dataGridState)
    {
        DataGridState = dataGridState;

        People = new ObservableCollection<Person>([]);

        FirstPageCommand = new RelayCommand(() =>
        {
            CurrentPage = 1;
            SetSkipTop();
        },
        () => CurrentPage != 1);

        PreviousPageCommand = new RelayCommand(() =>
        {
            CurrentPage = CurrentPage - 1;
            SetSkipTop();
        },
        () => CurrentPage > 1);

        NextPageCommand = new RelayCommand(() =>
        {
            CurrentPage = CurrentPage + 1;
            SetSkipTop();
        },
        () => CurrentPage < LastPage);

        LastPageCommand = new RelayCommand(() =>
        {
            CurrentPage = LastPage;
            SetSkipTop();
        },
        () => CurrentPage != LastPage);
    }

    public void SetSkipTop()
    {
        DataGridState.SetSkipTop((CurrentPage - 1) * PageSize, PageSize);
    }

    public async Task Refresh()
    {
        await Dispatcher.CurrentDispatcher.InvokeAsync(() =>
        {
            // If there's no Page Size, we don't need to load anything.
            if(PageSize == 0)
            {
                return;
            }

            // Get the Total Count, so we can update the First and Last Page.
            TotalItemCount = MockData.People
                .AsQueryable()
                .GetTotalItemCount(DataGridState);

            // If our current page is not beyond the last Page, we'll need to rerequest data. At
            // the moment this is going to trigger yet another query for the Count. Obviously that's
            // a big TODO for a better implementation.
            if (CurrentPage > 0 && CurrentPage > LastPage)
            {
                // If the number of items has reduced such that the current page index is no longer valid, move
                // automatically to the final valid page index and trigger a further data load.
                CurrentPage = LastPage;

                SetSkipTop();

                return;
            }

            // Notify all Event Handlers, so we can enable or disable the
            FirstPageCommand.NotifyCanExecuteChanged();
            PreviousPageCommand.NotifyCanExecuteChanged();
            NextPageCommand.NotifyCanExecuteChanged();
            LastPageCommand.NotifyCanExecuteChanged();

            List<Person> filteredResult = MockData.People
                    .AsQueryable()
                    .ApplyDataGridState(DataGridState)
                    .ToList();

            People = new ObservableCollection<Person>(filteredResult);
        });
    }
}

Adding your own FilterControls

If the existing Filter Controls don't suit your needs, you can add your own Controls. All you have to do is implementing the abstract base class FilterControl and register it in the FilterControlProvider (or add your own IFilterControlProvider implementation).

Conclusion

And that's it.

I think it's a nice library for adding filtering, pagination and sorting to a DataGrid, without having to dive into DataGrid internals and rather just use it by adding a Header Template.

The implementation? Yes, it is far from perfect... due to my lack of experience writing custom WPF controls. But I hope this library could be a starting point for collaboration and improving it.
