ASP.NET Core OData 8 and Relationship-based Access Control

October 25, 2023 by Philipp Wagner

In my previous article we have seen how to implement Relationship-based Access Control with ASP.NET Core, EntityFramework Core and Microsoft SQL Server. At the end of the article we had a RESTful API, that supported and authorized CRUD operations on entities:

In this article we will extend the Task Management Application to use ASP.NET Core OData, and see how to combine Relationship-based Access Control with an ASP.NET Core OData application.

All code in this article can be found at:

Table of contents

The Problem

I think ASP.NET Core OData is a great technology. It has a good integration with ASP.NET Core and plays very well with EntityFramework Core. Just a few lines of code and boom... you have a CRUD API, that supports paging, sorting, filtering and even aggregations.

But how do you authorize access to the data? You don't want to open up your entire database for everyone to see. A Role-based approach, that I have previously experimented with, falls flat because it can restrict access to Entity Sets and Navigation Properties... but it isn't fine-grained enough to work per Entity.

So in real life, Role-based permissions for OData are not fine-grained enough and you need to come up with an idea to authorize access to the data. A User should be allowed to query for a list of their UserTask entities only.

And that's where Relationship-based Access Control comes in!

What we are going to build

In the previous article an ASP.NET Core Backend for a Task Management Application has been developed. It basically consisted of a User, the User could be assigned to an Organization or a Team. UserTask entities can be assigned to Users, Teams or Organizations.

By using a ListObjects API we have been able to get the list of Objects a given Subject (for example a User) is related to. By using the Check API we have been able to check, if a User is authorized to access an Object.

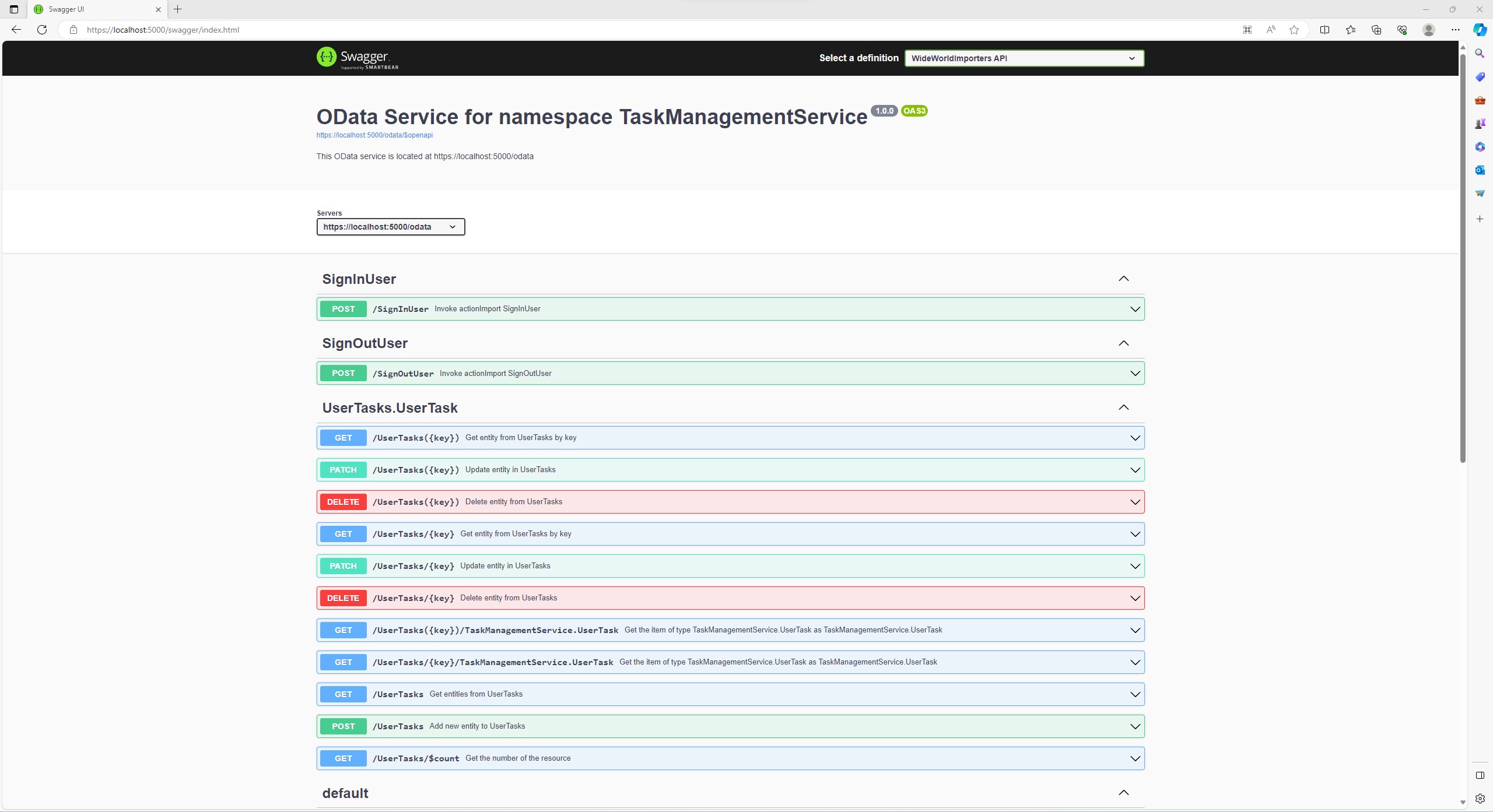

We are going to add a Swagger Page for testing the final API Endpoints:

Final Swagger Endpoints

ReBAC with ASP.NET Core OData 8

We start by adding the NuGet Package Microsoft.AspNetCore.OData to our project:

<PackageReference Include="Microsoft.AspNetCore.OData" Version="8.2.3" />

Adding the Entity Data Model (EDM)

It starts Entity Data Model (EDM), which is ...

[...] the abstract data model that is used to describe the data exposed by an OData service. An OData Metadata Document is a representation of a service's data model exposed for client consumption.

The ApplicationEdmModel is a static class, that returns the IEdmModel used by the ASP.NET Core OData framework. As of now it only contains the UserTask, the UserTaskStatusEnum and UserTaskPriorityEnum. If you want to expose Organizations, Teams and so on, you need to add them here.

For Authentication we also add two Unbound Actions SignInUser and SignOutUser to the Entity Data Model.

// Licensed under the MIT license. See LICENSE file in the project root for full license information.

using Microsoft.OData.Edm;
using Microsoft.OData.ModelBuilder;
using RebacExperiments.Server.Api.Models;

namespace RebacExperiments.Server.Api.Infrastructure.OData
{
    public static class ApplicationEdmModel
    {
        public static IEdmModel GetEdmModel()
        {
            var modelBuilder = new ODataConventionModelBuilder();

            modelBuilder.Namespace = "TaskManagementService";

            modelBuilder.EntitySet<UserTask>("UserTasks");

            modelBuilder.EnumType<UserTaskStatusEnum>();
            modelBuilder.EnumType<UserTaskPriorityEnum>();

            // Authentication
            RegisterSignInUserAction(modelBuilder);
            RegisterSignOutUserAction(modelBuilder);

            // Send as Lower Camel Case Properties, so the JSON looks better:
            modelBuilder.EnableLowerCamelCase();

            return modelBuilder.GetEdmModel();
        }

        private static void RegisterSignInUserAction(ODataConventionModelBuilder modelBuilder)
        {
            var signInUserAction = modelBuilder.Action("SignInUser");

            signInUserAction.HasDescription().HasDescription("SignInUser");

            signInUserAction.Parameter<string>("username").Required();
            signInUserAction.Parameter<string>("password").Required();
            signInUserAction.Parameter<bool>("rememberMe").Required();
        }

        private static void RegisterSignOutUserAction(ODataConventionModelBuilder modelBuilder)
        {
            var signOutUserAction = modelBuilder.Action("SignOutUser");

            signOutUserAction.HasDescription().HasDescription("SignOutUser");
        }
    }
}

Enabling the OData Features for ASP.NET Core

We can then add the OData feature to the Program.cs, so that the requests sent are routed correctly using an /odata route prefix.

// ...

builder.Services
    .AddControllers()
    // Register OData Routes:
    .AddOData((options) =>
    {
        options.AddRouteComponents(routePrefix: "odata", model: ApplicationEdmModel.GetEdmModel(), configureServices: svcs =>
        {
            svcs.AddSingleton<ODataBatchHandler>(new DefaultODataBatchHandler());
        });

        // Do not enable $expand
        options.Select().OrderBy().Filter().SetMaxTop(250).Count();
    });

Please note, that we are not enabling the $expand feature explicitly. As of now ASP.NET Core OData 8 would query the expanded table without applying our authorization measures, that's for a later iteration. Keep it in mind.

OData Error Handling

ASP.NET Core OData 8 comes with a set of ActionResults, that we can return to a user, such as a UnauthorizedODataResult, NotFoundODataResult, ... the ASP.NET Core OData framework uses these special results to add some metadata to them. The only ActionResult, that's missing for our application is a ForbiddenODataResult, so we add it as:

// Licensed under the MIT license. See LICENSE file in the project root for full license information.

// ...

namespace RebacExperiments.Server.Api.Infrastructure.OData
{
    /// <summary>
    /// Represents a result that when executed will produce a Unauthorized (401) response.
    /// </summary>
    /// <remarks>This result creates an <see cref="ODataError"/> with status code: 401.</remarks>
    public class ForbiddenODataResult : ForbidResult, IODataErrorResult
    {
        /// <summary>
        /// OData Error.
        /// </summary>
        public ODataError Error { get; }

        /// <summary>
        /// Initializes a new instance of the class.
        /// </summary>
        /// <param name="message">Error Message</param>
        public ForbiddenODataResult(string message)
        {
            if (message == null)
            {
                ArgumentNullException.ThrowIfNull("message");
            }

            Error = new ODataError
            {
                Message = message,
                ErrorCode = StatusCodes.Status403Forbidden.ToString()
            };
        }

        /// <summary>
        /// Initializes a new instance of the class.
        /// </summary>
        /// <param name="odataError">OData Error.</param>
        public ForbiddenODataResult(ODataError odataError)
        {
            Error = odataError;
        }

        /// <inheritdoc/>
        public async override Task ExecuteResultAsync(ActionContext context)
        {
            ObjectResult objectResult = new ObjectResult(Error)
            {
                StatusCode = StatusCodes.Status403Forbidden
            };

            await objectResult.ExecuteResultAsync(context).ConfigureAwait(false);
        }
    }
}

The previous article converted an Exception to a ProblemDetails DTO, which is a RFC 7807-conform representation of errors in HTTP APIs. But the OData specification comes with its own ODataError, so we add an ApplicationErrorHandler to convert an Exceptionto an ODataError:

// Licensed under the MIT license. See LICENSE file in the project root for full license information.

// ...

namespace RebacExperiments.Server.Api.Infrastructure.Errors
{

    /// <summary>
    /// Handles errors returned by the application.
    /// </summary>
    public class ApplicationErrorHandler
    {
        private readonly ILogger<ApplicationErrorHandler> _logger;

        private readonly ApplicationErrorHandlerOptions _options;

        public ApplicationErrorHandler(ILogger<ApplicationErrorHandler> logger, IOptions<ApplicationErrorHandlerOptions> options)
        {
            _logger = logger;
            _options = options.Value;
        }

        public ActionResult HandleInvalidModelState(HttpContext httpContext, ModelStateDictionary modelStateDictionary)
        {
            _logger.TraceMethodEntry();

            ODataError error = new ODataError()
            {
                ErrorCode = ErrorCodes.ValidationFailed,
                Message = "One or more validation errors occured",
                Details = GetODataErrorDetails(modelStateDictionary),

            };

            // If there was an exception, use this as ODataInnerError
            if (TryGetFirstException(modelStateDictionary, out var exception))
            {
                AddInnerError(httpContext, error, exception);
            }

            return new BadRequestObjectResult(error);
        }

        private bool TryGetFirstException(ModelStateDictionary modelStateDictionary, [NotNullWhen(true)] out Exception? e)
        {
            _logger.TraceMethodEntry();

            e = null;

            foreach (var modelStateEntry in modelStateDictionary)
            {
                foreach (var modelError in modelStateEntry.Value.Errors)
                {
                    if (modelError.Exception != null)
                    {
                        e = modelError.Exception;

                        return true;
                    }
                }
            }

            return false;
        }

        private List<ODataErrorDetail> GetODataErrorDetails(ModelStateDictionary modelStateDictionary)
        {
            _logger.TraceMethodEntry();

            // Validation Details
            var result = new List<ODataErrorDetail>();

            foreach (var modelStateEntry in modelStateDictionary)
            {
                foreach (var modelError in modelStateEntry.Value.Errors)
                {
                    // We cannot make anything sensible for the caller here. We log it, but then go on
                    // as if nothing has happened. Alternative is to populate a chain of ODataInnerError
                    // or abuse the ODataErrorDetails...
                    if (modelError.Exception != null)
                    {
                        _logger.LogError(modelError.Exception, "Invalid ModelState due to an exception");

                        continue;
                    }

                    var odataErrorDetail = new ODataErrorDetail
                    {
                        ErrorCode = ErrorCodes.ValidationFailed,
                        Message = modelError.ErrorMessage,
                        Target = modelStateEntry.Key,
                    };

                    result.Add(odataErrorDetail);
                }
            }

            return result;
        }

        public ActionResult HandleException(HttpContext httpContext, Exception exception)
        {
            _logger.TraceMethodEntry();

            _logger.LogError(exception, "Call to '{RequestPath}' failed due to an Exception", httpContext.Request.Path);

            return exception switch
            {
                AuthenticationFailedException e => HandleAuthenticationException(httpContext, e),
                EntityConcurrencyException e => HandleEntityConcurrencyException(httpContext, e),
                EntityNotFoundException e => HandleEntityNotFoundException(httpContext, e),
                EntityUnauthorizedAccessException e => HandleEntityUnauthorizedException(httpContext, e),
                Exception e => HandleSystemException(httpContext, e)
            };
        }

        private ActionResult HandleAuthenticationException(HttpContext httpContext, AuthenticationFailedException e)
        {
            _logger.TraceMethodEntry();

            var error = new ODataError
            {
                ErrorCode = ErrorCodes.AuthenticationFailed,
                Message = e.ErrorMessage,
            };

            AddInnerError(httpContext, error, e);

            return new UnauthorizedODataResult(error);
        }

        private ActionResult HandleEntityConcurrencyException(HttpContext httpContext, EntityConcurrencyException e)
        {
            _logger.TraceMethodEntry();

            var error = new ODataError
            {
                ErrorCode = e.ErrorCode,
                Message = e.ErrorMessage,
            };

            AddInnerError(httpContext, error, e);

            return new ConflictODataResult(error);
        }

        private ActionResult HandleEntityNotFoundException(HttpContext httpContext, EntityNotFoundException e)
        {
            _logger.TraceMethodEntry();

            var error = new ODataError
            {
                ErrorCode = e.ErrorCode,
                Message = e.ErrorMessage,
            };

            AddInnerError(httpContext, error, e);

            return new NotFoundODataResult(error);
        }

        private ActionResult HandleEntityUnauthorizedException(HttpContext httpContext, EntityUnauthorizedAccessException e)
        {
            _logger.TraceMethodEntry();

            var error = new ODataError
            {
                ErrorCode = e.ErrorCode,
                Message = e.ErrorMessage,
            };

            AddInnerError(httpContext, error, e);

            return new ForbiddenODataResult(error);
        }

        private ActionResult HandleSystemException(HttpContext httpContext, Exception e)
        {
            _logger.TraceMethodEntry();

            var error = new ODataError
            {
                ErrorCode = ErrorCodes.InternalServerError,
                Message = "An Internal Server Error occured"
            };

            AddInnerError(httpContext, error, e);

            return new ObjectResult(error)
            {
                StatusCode = (int)HttpStatusCode.InternalServerError,
            };
        }

        private void AddInnerError(HttpContext httpContext, ODataError error, Exception e)
        {
            _logger.TraceMethodEntry();

            error.InnerError = new ODataInnerError();

            error.InnerError.Properties["trace-id"] = new ODataPrimitiveValue(httpContext.TraceIdentifier);

            if (_options.IncludeExceptionDetails)
            {
                error.InnerError.Message = e.Message;
                error.InnerError.StackTrace = e.StackTrace;
                error.InnerError.TypeName = e.GetType().Name;
            }
        }
    }
}

And in the Program.cs we are registering the error handler as:

// ...

builder.Services.AddSingleton<ApplicationErrorHandler>();

// ...

We can see how to use the ApplicationErrorHandler in the UserTask controller. If you have read the previous article, you'll notice no differences in error handling compared to the Non-OData Controller.

// Licensed under the MIT license. See LICENSE file in the project root for full license information.

// ...

namespace RebacExperiments.Server.Api.Controllers
{
    public class UserTasksController : ODataController
    {
        private readonly ILogger<UserTasksController> _logger;
        private readonly ApplicationErrorHandler _applicationErrorHandler;

        public UserTasksController(ILogger<UserTasksController> logger, ApplicationErrorHandler applicationErrorHandler)
        {
            _logger = logger;
            _applicationErrorHandler = applicationErrorHandler;
        }

        [Authorize(Policy = Policies.RequireUserRole)]
        [EnableRateLimiting(Policies.PerUserRatelimit)]
        public async Task<IActionResult> GetUserTask([FromServices] ApplicationDbContext context, [FromServices] IUserTaskService userTaskService, [FromODataUri(Name = "key")] int key, CancellationToken cancellationToken)
        {
            _logger.TraceMethodEntry();

            if (!ModelState.IsValid)
            {
                return _applicationErrorHandler.HandleInvalidModelState(HttpContext, ModelState);
            }

            try
            {
                var userTask = await userTaskService.GetUserTaskByIdAsync(context, key, User.GetUserId(), cancellationToken);

                return Ok(userTask);
            }
            catch (Exception ex)
            {
                return _applicationErrorHandler.HandleException(HttpContext, ex);
            }
        }

        // ...
    }
}

OData Query Composition using ODataQueryOptions for UserTasks

ASP.NET Core OData 8 parses an incoming OData URI to ODataQueryOptions, that can be used to perform query composition. So in the UserTaskService we start by adding a QueryUserTasks method, that will return the IQueryable with the source data:

// Licensed under the MIT license. See LICENSE file in the project root for full license information.

// ...

namespace RebacExperiments.Server.Api.Services
{
    public class UserTaskService : IUserTaskService
    {
        private readonly ILogger<UserTaskService> _logger;

        public UserTaskService(ILogger<UserTaskService> logger)
        {
            _logger = logger;
        }

        // ...

        public IQueryable<UserTask> QueryUserTasks(ApplicationDbContext context, int currentUserId)
        {
            _logger.TraceMethodEntry();

            return context.ListUserObjects<UserTask>(currentUserId, new[] { Relations.Viewer, Relations.Owner });
        }
    }
}

And in the UserTasksController we can then use it like this:

// Licensed under the MIT license. See LICENSE file in the project root for full license information.

//...

namespace RebacExperiments.Server.Api.Controllers
{
    public class UserTasksController : ODataController
    {
        private readonly ILogger<UserTasksController> _logger;
        private readonly ODataApplicationErrorHandler _applicationErrorHandler;

        public UserTasksController(ILogger<UserTasksController> logger, ODataApplicationErrorHandler applicationErrorHandler)
        {
            _logger = logger;
            _applicationErrorHandler = applicationErrorHandler;
        }

        // ...

        [HttpGet]
        [Authorize(Policy = Policies.RequireUserRole)]
        [EnableRateLimiting(Policies.PerUserRatelimit)]
        public ActionResult GetUserTasks([FromServices] ApplicationDbContext context, [FromServices] IUserTaskService userTaskService, ODataQueryOptions<UserTask> queryOptions, CancellationToken cancellationToken)
        {
            _logger.TraceMethodEntry();

            if (!ModelState.IsValid)
            {
                return _applicationErrorHandler.HandleInvalidModelState(HttpContext, ModelState);
            }

            try
            {
                var queryable = userTaskService.QueryUserTasks(context, User.GetUserId());

                return Ok(queryOptions.ApplyTo(queryable));
            }
            catch (Exception ex)
            {
                return _applicationErrorHandler.HandleException(HttpContext, ex);
            }
        }

        // ...
    }
}

ODataControllers

ODataController for Authentication

We need two Unboundend Actions SignInUser to sign-in a User, and SignOutUser to sign-out the User. It basically looks like the AuthenticationController from the previous article, only with the CredentialsDto removed and replacing it with ODataActionParameters.

// Licensed under the MIT license. See LICENSE file in the project root for full license information.

//...

namespace RebacExperiments.Server.Api.Controllers
{
    public class AuthenticationController : ODataController
    {
        private readonly ILogger<AuthenticationController> _logger;

        private readonly ApplicationErrorHandler _applicationErrorHandler;

        public AuthenticationController(ILogger<AuthenticationController> logger, ApplicationErrorHandler applicationErrorHandler)
        {
            _logger = logger;
            _applicationErrorHandler = applicationErrorHandler;
        }

        [HttpPost("odata/SignInUser")]
        public async Task<IActionResult> SignInUser([FromServices] ApplicationDbContext context, [FromServices] IUserService userService, [FromBody] ODataActionParameters parameters, CancellationToken cancellationToken)
        {
            _logger.TraceMethodEntry();

            if (!ModelState.IsValid)
            {
                return _applicationErrorHandler.HandleInvalidModelState(HttpContext, ModelState);
            }

            string username = (string)parameters["username"];
            string password = (string)parameters["password"];
            bool rememberMe = (bool)parameters["rememberMe"];

            try
            {
                // Create ClaimsPrincipal from Database
                var userClaims = await userService.GetClaimsAsync(
                    context: context,
                    username: username,
                    password: password,
                    cancellationToken: cancellationToken);

                // Create the ClaimsPrincipal
                var claimsIdentity = new ClaimsIdentity(userClaims, CookieAuthenticationDefaults.AuthenticationScheme);
                var claimsPrincipal = new ClaimsPrincipal(claimsIdentity);

                // It's a valid ClaimsPrincipal, sign in
                await HttpContext.SignInAsync(claimsPrincipal, new AuthenticationProperties { IsPersistent = rememberMe });

                return Ok();
            }
            catch (Exception ex)
            {
                return _applicationErrorHandler.HandleException(HttpContext, ex);
            }
        }

        [HttpPost("odata/SignOutUser")]
        public async Task<IActionResult> SignOutUser()
        {
            _logger.TraceMethodEntry();

            try
            {
                await HttpContext.SignOutAsync(CookieAuthenticationDefaults.AuthenticationScheme);
            }
            catch(Exception ex)
            {
                return _applicationErrorHandler.HandleException(HttpContext, ex);
            }

            return Ok();
        }
    }
}

ODataController for UserTasks

We can then finish the UserTasksController to provide the CRUD methods.

// Licensed under the MIT license. See LICENSE file in the project root for full license information.

// ...

namespace RebacExperiments.Server.Api.Controllers
{
    public class UserTasksController : ODataController
    {
        private readonly ILogger<UserTasksController> _logger;
        private readonly ApplicationErrorHandler _applicationErrorHandler;

        public UserTasksController(ILogger<UserTasksController> logger, ApplicationErrorHandler applicationErrorHandler)
        {
            _logger = logger;
            _applicationErrorHandler = applicationErrorHandler;
        }

        [Authorize(Policy = Policies.RequireUserRole)]
        [EnableRateLimiting(Policies.PerUserRatelimit)]
        public async Task<IActionResult> GetUserTask([FromServices] ApplicationDbContext context, [FromServices] IUserTaskService userTaskService, [FromODataUri(Name = "key")] int key, CancellationToken cancellationToken)
        {
            _logger.TraceMethodEntry();

            if (!ModelState.IsValid)
            {
                return _applicationErrorHandler.HandleInvalidModelState(HttpContext, ModelState);
            }

            try
            {
                var userTask = await userTaskService.GetUserTaskByIdAsync(context, key, User.GetUserId(), cancellationToken);

                return Ok(userTask);
            }
            catch (Exception ex)
            {
                return _applicationErrorHandler.HandleException(HttpContext, ex);
            }
        }

        [HttpGet]
        [Authorize(Policy = Policies.RequireUserRole)]
        [EnableRateLimiting(Policies.PerUserRatelimit)]
        public ActionResult GetUserTasks([FromServices] ApplicationDbContext context, [FromServices] IUserTaskService userTaskService, ODataQueryOptions<UserTask> queryOptions)
        {
            _logger.TraceMethodEntry();

            if (!ModelState.IsValid)
            {
                return _applicationErrorHandler.HandleInvalidModelState(HttpContext, ModelState);
            }

            try
            {
                var queryable = userTaskService.QueryUserTasks(context, User.GetUserId());

                return Ok(queryOptions.ApplyTo(queryable));
            }
            catch (Exception ex)
            {
                return _applicationErrorHandler.HandleException(HttpContext, ex);
            }
        }

        [HttpPost]
        [Authorize(Policy = Policies.RequireUserRole)]
        [EnableRateLimiting(Policies.PerUserRatelimit)]
        public async Task<IActionResult> PostUserTask([FromServices] ApplicationDbContext context, [FromServices] IUserTaskService userTaskService, [FromBody] UserTask userTask, CancellationToken cancellationToken)
        {
            _logger.TraceMethodEntry();

            if (!ModelState.IsValid)
            {
                return _applicationErrorHandler.HandleInvalidModelState(HttpContext, ModelState);
            }

            try
            {
                await userTaskService.CreateUserTaskAsync(context, userTask, User.GetUserId(), cancellationToken);

                return Created(userTask);
            }
            catch (Exception ex)
            {
                return _applicationErrorHandler.HandleException(HttpContext, ex);
            }
        }

        [HttpPut]
        [HttpPatch]
        [Authorize(Policy = Policies.RequireUserRole)]
        [EnableRateLimiting(Policies.PerUserRatelimit)]
        public async Task<IActionResult> PatchUserTask([FromServices] ApplicationDbContext context, [FromServices] IUserTaskService userTaskService, [FromODataUri] int key, [FromBody] Delta<UserTask> delta, CancellationToken cancellationToken)
        {
            _logger.TraceMethodEntry();

            if (!ModelState.IsValid)
            {
                return _applicationErrorHandler.HandleInvalidModelState(HttpContext, ModelState);
            }

            try
            {
                // Get the UserTask with the current values:
                var userTask = await userTaskService.GetUserTaskByIdAsync(context, key, User.GetUserId(), cancellationToken);

                // Patch the Values to it:
                delta.Patch(userTask);

                // Update the Values:
                await userTaskService.UpdateUserTaskAsync(context, userTask, User.GetUserId(), cancellationToken);

                return Updated(userTask);
            }
            catch (Exception ex)
            {
                return _applicationErrorHandler.HandleException(HttpContext, ex);
            }
        }


        [HttpDelete]
        [Authorize(Policy = Policies.RequireUserRole)]
        [EnableRateLimiting(Policies.PerUserRatelimit)]
        public async Task<IActionResult> DeleteUserTask([FromServices] ApplicationDbContext context, [FromServices] IUserTaskService userTaskService, [FromODataUri(Name = "key")] int key, CancellationToken cancellationToken)
        {
            _logger.TraceMethodEntry();

            if (!ModelState.IsValid)
            {
                return _applicationErrorHandler.HandleInvalidModelState(HttpContext, ModelState);
            }

            try
            {
                await userTaskService.DeleteUserTaskAsync(context, key, User.GetUserId(), cancellationToken);

                return StatusCode(StatusCodes.Status204NoContent);
            }
            catch (Exception ex)
            {
                return _applicationErrorHandler.HandleException(HttpContext, ex);
            }
        }
    }
}

And believe it or not... that's it basically!

OData API Example using a .http File

We got everything in place. We can now start the application and use Swagger to query it. But Visual Studio 2022 now comes with the "Endpoints Explorer" to execute HTTP Requests against HTTP endpoints. Though it's not fully-fledged yet, I think it'll improve with time and it already covers a lot of use cases.

You can find the Endpoints Explorer at:

  • View -> Other Windows -> Endpoints Explorer

By clicking on RebacExperiments.Server.Api.http the HTTP script with the sample requests comes up.

The Example Setup

We have got 2 Tasks:

  • task_152: "Sign Document"
  • task 323: "Call Back Philipp Wagner"

And we have got two users:

  • user_philipp: "Philipp Wagner"
  • user_max: "Max Mustermann"

Both users are permitted to login, so they are allowed to query for data, given a permitted role and permissions.

There are two Organizations:

  • Organization 1: "Organization #1"
  • Organization 2: "Organization #2"

And 2 Roles:

  • role_user: "User" (Allowed to Query for UserTasks)
  • role_admin: "Administrator" (Allowed to Delete a UserTask)

The Relationships between the entities are the following:

ObjectKey ObjectNS ObjRel SubjectKey SubjectNS SubjectRel
:task_323: UserTask viewer :organization_1: Organization member
:task_152: UserTask viewer :organization_1: Organization member
:task_152: UserTask viewer :organization_2: Organization member
:organization_1: Organization member :user_philipp: User NULL
:organization_2: Organization member :user_max: User NULL
:role_user: Role member :user_philipp: User NULL
:role_admin: Role member :user_philipp: User NULL
:role_user: Role member :user_max: User NULL
:task_323: UserTask owner :user_2: User member

HTTP Endpoints Explorer Script

We start by defining the Host Address:

@RebacExperiments.Server.Api_HostAddress = https://localhost:5000/odata

Then we signin philipp@bytefish.de using the SignInUser Action:

### Sign In "philipp@bytefish.de"

POST {{RebacExperiments.Server.Api_HostAddress}}/SignInUser
Content-Type: application/json

{
  "username": "philipp@bytefish.de",
  "password": "5!F25GbKwU3P",
  "rememberMe": true
}

And then we get all UserTask entities for the current user:

### Get all UserTasks for "philipp@bytefish.de"

GET {{RebacExperiments.Server.Api_HostAddress}}/UserTasks

The response is going to contain two entities:

{
  "@odata.context": "https://localhost:5000/odata/$metadata#UserTasks",
  "value": [
    {
      "title": "Call Back",
      "description": "Call Back Philipp Wagner",
      "dueDateTime": null,
      "reminderDateTime": null,
      "completedDateTime": null,
      "assignedTo": null,
      "userTaskPriority": "Low",
      "userTaskStatus": "NotStarted",
      "id": 152,
      "rowVersion": "AAAAAAAAB\u002Bw=",
      "lastEditedBy": 1,
      "validFrom": "2013-01-01T00:00:00\u002B01:00",
      "validTo": "9999-12-31T23:59:59.9999999\u002B01:00"
    },
    {
      "title": "Sign Document",
      "description": "You need to Sign a Document",
      "dueDateTime": null,
      "reminderDateTime": null,
      "completedDateTime": null,
      "assignedTo": null,
      "userTaskPriority": "Normal",
      "userTaskStatus": "InProgress",
      "id": 323,
      "rowVersion": "AAAAAAAAB\u002B0=",
      "lastEditedBy": 1,
      "validFrom": "2013-01-01T00:00:00\u002B01:00",
      "validTo": "9999-12-31T23:59:59.9999999\u002B01:00"
    }
  ]
}

We can then introduce some OData Goodies and say we want only 1 entity, the results should be ordered by the id property and the response should contain the total number of entities the user is authorized to acces.

### Get the first task and return the total count of Entities visible to "philipp@bytefish.de"

GET {{RebacExperiments.Server.Api_HostAddress}}/UserTasks?$top=1&$orderby=id&$count=true

The result is going to contain the @odata.count property and have 1 task only.

{
  "@odata.context": "https://localhost:5000/odata/$metadata#UserTasks",
  "@odata.count": 2,
  "value": [
    {
      "title": "Call Back",
      "description": "Call Back Philipp Wagner",
      "dueDateTime": null,
      "reminderDateTime": null,
      "completedDateTime": null,
      "assignedTo": null,
      "userTaskPriority": "Low",
      "userTaskStatus": "NotStarted",
      "id": 152,
      "rowVersion": "AAAAAAAAB\u002Bw=",
      "lastEditedBy": 1,
      "validFrom": "2013-01-01T00:00:00\u002B01:00",
      "validTo": "9999-12-31T23:59:59.9999999\u002B01:00"
    }
  ]
}

We can then sign in as max@mustermann.local.

### Sign In as "max@mustermann.local"

POST {{RebacExperiments.Server.Api_HostAddress}}/SignInUser
Content-Type: application/json

{
  "username": "max@mustermann.local",
  "password": "5!F25GbKwU3P",
  "rememberMe": true
}

If you try to get all UserTask entities of max@mustermann.local:

### Get all UserTasks for "max@mustermann.local"

GET {{RebacExperiments.Server.Api_HostAddress}}/UserTasks

There will be 1 task only.

{
  "@odata.context": "https://localhost:5000/odata/$metadata#UserTasks",
  "value": [
    {
      "title": "Call Back",
      "description": "Call Back Philipp Wagner",
      "dueDateTime": null,
      "reminderDateTime": null,
      "completedDateTime": null,
      "assignedTo": null,
      "userTaskPriority": "Low",
      "userTaskStatus": "NotStarted",
      "id": 152,
      "rowVersion": "AAAAAAAAB\u002Bw=",
      "lastEditedBy": 1,
      "validFrom": "2013-01-01T00:00:00\u002B01:00",
      "validTo": "9999-12-31T23:59:59.9999999\u002B01:00"
    }
  ]
}

Now we'll create a new UserTask "API HTTP File Example":

### Create a new UserTask "API HTTP File Example" as "max@mustermann.local"

POST {{RebacExperiments.Server.Api_HostAddress}}/UserTasks
Content-Type: application/json

{
    "title": "API HTTP File Example",
    "description": "API HTTP File Example",
    "dueDateTime": null,
    "reminderDateTime": null,
    "completedDateTime": null,
    "assignedTo": null,
    "userTaskPriority": "Normal",
    "userTaskStatus": "NotStarted"
}

And we can see, that max@mustermann.local now sees both UserTask entities:

{
  "@odata.context": "https://localhost:5000/odata/$metadata#UserTasks",
  "value": [
    {
      "title": "Call Back",
      "description": "Call Back Philipp Wagner",
      "dueDateTime": null,
      "reminderDateTime": null,
      "completedDateTime": null,
      "assignedTo": null,
      "userTaskPriority": "Low",
      "userTaskStatus": "NotStarted",
      "id": 152,
      "rowVersion": "AAAAAAAAB\u002Bw=",
      "lastEditedBy": 1,
      "validFrom": "2013-01-01T00:00:00\u002B01:00",
      "validTo": "9999-12-31T23:59:59.9999999\u002B01:00"
    },
    {
      "title": "API HTTP File Example",
      "description": "API HTTP File Example",
      "dueDateTime": null,
      "reminderDateTime": null,
      "completedDateTime": null,
      "assignedTo": null,
      "userTaskPriority": "Normal",
      "userTaskStatus": "NotStarted",
      "id": 38191,
      "rowVersion": "AAAAAAAACAY=",
      "lastEditedBy": 7,
      "validFrom": "2023-10-25T19:58:44.8007138\u002B02:00",
      "validTo": "9999-12-31T23:59:59.9999999\u002B01:00"
    }
  ]
}

If we sign in as philipp@bytefish.de again:

### Sign In "philipp@bytefish.de"

POST {{RebacExperiments.Server.Api_HostAddress}}/SignInUser
Content-Type: application/json

{
  "username": "philipp@bytefish.de",
  "password": "5!F25GbKwU3P",
  "rememberMe": true
}

We can see with a call to /UserTasks, that he doesn't see the new UserTask at all.

{
  "@odata.context": "https://localhost:5000/odata/$metadata#UserTasks",
  "value": [
    {
      "title": "Call Back",
      "description": "Call Back Philipp Wagner",
      "dueDateTime": null,
      "reminderDateTime": null,
      "completedDateTime": null,
      "assignedTo": null,
      "userTaskPriority": "Low",
      "userTaskStatus": "NotStarted",
      "id": 152,
      "rowVersion": "AAAAAAAAB\u002Bw=",
      "lastEditedBy": 1,
      "validFrom": "2013-01-01T00:00:00\u002B01:00",
      "validTo": "9999-12-31T23:59:59.9999999\u002B01:00"
    },
    {
      "title": "Sign Document",
      "description": "You need to Sign a Document",
      "dueDateTime": null,
      "reminderDateTime": null,
      "completedDateTime": null,
      "assignedTo": null,
      "userTaskPriority": "Normal",
      "userTaskStatus": "InProgress",
      "id": 323,
      "rowVersion": "AAAAAAAAB\u002B0=",
      "lastEditedBy": 1,
      "validFrom": "2013-01-01T00:00:00\u002B01:00",
      "validTo": "9999-12-31T23:59:59.9999999\u002B01:00"
    }
  ]
}

Conclusion

That's it! We have successfully authorized the access to Entity Sets using a Relationship-based Access Control model. The Git Repository contains much more goodies and food for thought. The Project also comes with an OpenAPI integration so you can use the Swagger UI for testing.
