I am currently writing a blog post on Column Store Indices with SQL Server 2016. In the upcoming article I will show how to query and evaluate a large dataset with SQL Server and how to use Row Store and Column Store Indices for speeding up queries.
You can see the work in progress here:
About the Dataset
The dataset is the Quality Controlled Local Climatological Data (QCLCD) for 2014 and 2015. It contains hourly weather measurements for more than 1,600 US Weather Stations. It is a great dataset to learn about data processing and data visualization:
The Quality Controlled Local Climatological Data (QCLCD) consist of hourly, daily, and monthly summaries for approximately 1,600 U.S. locations. Daily Summary forms are not available for all stations. Data are available beginning January 1, 2005 and continue to the present. Please note, there may be a 48-hour lag in the availability of the most recent data.
The data is available as CSV files at:
Anomaly Detection
Now real life data is never perfect and the weather data is no exception. Devices can break. Sensors can fail and report wrong values. Networks can be down.
So in real datasets you often have to deal with missing measurements and other anomalies. And this is what this post is about: Anomaly Detection.
In data mining, anomaly detection (also outlier detection) is the identification of items, events or observations which do not conform to an expected pattern or other items in a dataset. Typically the anomalous items will translate to some kind of problem such as bank fraud, a structural defect, medical problems or errors in a text.
Anomalies are also referred to as outliers, novelties, noise, deviations and exceptions. (Wikipedia)
The Anomaly: The coldest day in Texas
In the process of writing the blog post I wanted to make up some interesting queries.
As an example I wanted to determine the coldest day in Texas, which translates to the following SQL Query:
DECLARE @StateName NVARCHAR(255) = 'TX';
WITH StationsInState AS (
SELECT [WBAN], [Name], [State], [Location], [Latitude], [Longitude]
FROM [LocalWeatherDatabase].[sample].[Station]
WHERE State = @StateName
)
SELECT TOP 1 s.*, d.Timestamp, d.Temperature
FROM StationsInState s
INNER JOIN [sample].[LocalWeatherData] d ON s.WBAN = d.WBAN
WHERE Temperature IS NOT NULL
ORDER BY Temperature ASC
Surprisingly the SQL Query returns -43 °C for Port Isabel on the 15th September of 2015:
WBAN Name State Location Latitude Longitude Timestamp Temperature
12957 PORT ISABEL TX PORT ISABEL-CAMERON CO APT 26.16583 -97.34583 2015-09-15 02:53:00.0000000 -43.3
-43 °C on a September day in Texas looks suspiciously like an outlier. This is most probably a measurement error.
Visualizing the Temperature with R
I have been doing quite a lot of data mining in a previous life. So all this makes a good excuse to work with R again.
R is an open source programming language and software environment for statistical computing and graphics that is supported by the R Foundation for Statistical Computing. The R language is widely used among statisticians and data miners for developing statistical software and data analysis. (Wikipedia)
And before digging deeper it is useful to get an overview about the temperature in September 2015 for the Station 12957.
The Plan
The basic idea is to write an SQL query for selecting the weather data, use RODBC for connecting to the database, infuser for building the query and ggplot2 for plotting the timeseries. The basic plot will show what the data in question looks like.
SQL Query Template
I am only interested in the temperature for a full hour, so I am removing the minute part of the timestamp. There
are probably multiple measurements in an hour, so the second Common Table Expression (DistinctSeries) is grouping the
measurements by hour and calculates the average temperature for each full hour:
WITH BoundedTimeSeries as (
SELECT dateadd(hour, datediff(hour, 0, Timestamp), 0) as Timestamp, Temperature
FROM [sample].[LocalWeatherData] weatherData
WHERE WBAN = '{{wban}}' AND Timestamp BETWEEN '{{start_date}}' and '{{end_date}}'
),
DistinctSeries as (
SELECT Timestamp, AVG(Temperature) as Temperature
FROM BoundedTimeSeries b
GROUP BY Timestamp
)
SELECT d.Timestamp as timestamp, d.Temperature as temperature
FROM DistinctSeries d
WHERE Temperature is not null
ORDER BY Timestamp ASC
Plotting the Temperature in September 2015
The SQL query can now be used to query the temperature for a given weather station (wban) and a time range (start_date and end_date):
library(RODBC)
library(dplyr)
library(infuser)
library(readr)
library(magrittr)
library(ggplot2)
# Connection String for the SQL Server Instance:
connectionString <- "Driver=SQL Server;Server=.;Database=LocalWeatherDatabase;Trusted_Connection=Yes"
# Connect to the Database:
connection <- odbcDriverConnect(connectionString)
# Read the SQL Query from an external file and infuse the variables. Keeps the Script clean:
query <- read_file("D:\\github\\WeatherDataColumnStore\\WeatherDataColumnStore\\R\\anomaly\\query.sql") %>% infuse(wban = "12957", start_date="2015-09-01 00:00:00.000", end_date="2015-09-30 23:59:59.997", simple_character = TRUE)
# Query the Database:
ts_temp <- sqlQuery(connection, query)
# Close ODBC Connection:
odbcClose(connection)
temperature_september <- ggplot(ts_temp, aes(timestamp, temperature)) +
geom_line(na.rm=TRUE) +
geom_smooth(size = 1, se=FALSE) +
ggtitle("Temperature September 2015") +
xlab("Timestamp") +
ylab("Temperature (C)") +
theme_bw() +
theme(plot.title = element_text(hjust = 0.5))
temperature_september

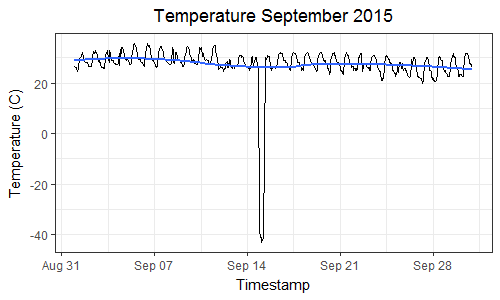

And looking at the plot, we can see that the temperature really is an outlier (click for full size):
Anomaly Detection with the Twitter AnomalyDetection library
All this is interesting, but how could we detect such outliers automatically?
I decided to use the AnomalyDetection library built by Twitter:
It is described as:
AnomalyDetection is an open-source R package to detect anomalies which is robust, from a statistical standpoint, in the presence of seasonality and an underlying trend. The AnomalyDetection package can be used in wide variety of contexts. For example, detecting anomalies in system metrics after a new software release, user engagement post an A/B test, or for problems in econometrics, financial engineering, political and social sciences.
The AnomalyDetection library can be installed from the R Console with:
install.packages("devtools")
devtools::install_github("twitter/AnomalyDetection")
library(AnomalyDetection)
Finding the Anomalies in the Weather Data
With the SQL Query defined above and RODBC it is easy to query all data from 2014 and 2015.
The data in ts_temp is bound to the full hour of a measurement, but the timeseries still contains missing values!
So in order to find the timestamps with missing values, I am first defining a dense time series ts_dense. It includes all timestamps,
that we expect the measurements at. Then by left joining the dense series and the bounded series on the timestamp, we are creating a new
timeseries ts_merged. ts_merged is now a dense timeseries, where timestamps with missing values have an NA value.
These measurements have to be interpolated for the anomaly detection. In the example I am simply using the zoo library for interpolation.
And finally the AnomalyDetectionVec function can be executed with the interpolated values and a period of 8760, which represents the hours in a year:
library(RODBC)
library(dplyr)
library(infuser)
library(readr)
library(magrittr)
library(ggplot2)
library(zoo)
library(AnomalyDetection)
# Connection String for the SQL Server Instance:
connectionString <- "Driver=SQL Server;Server=.;Database=LocalWeatherDatabase;Trusted_Connection=Yes"
# Connect to the Database:
connection <- odbcDriverConnect(connectionString)
# Read the SQL Query from an external file and infuse the variables. Keeps the Script clean:
query <- read_file("D:\\github\\WeatherDataColumnStore\\WeatherDataColumnStore\\R\\anomaly\\query.sql") %>% infuse(wban = "12957", start_date="2014-01-01 00:00:00.000", end_date="2016-07-01 23:59:59.997", simple_character = TRUE)
# Query the Database:
ts_temp <- sqlQuery(connection, query)
# Close ODBC Connection:
odbcClose(connection)
# Build a dense timeseries with all expected timestamps:
ts_dense <- data.frame(timestamp=seq(as.POSIXct("2014-01-01"), as.POSIXct("2015-12-31"), by="hour"))
# Build the Dense series by left joining both series:
ts_merged <- left_join(ts_dense, ts_temp, by = c("timestamp" = "timestamp"))
# Use zoo to interpolate missing values:
ts_merged$interpolated_temperature <- na.approx(ts_merged$temperature)
# Detect Anomalies:
res = AnomalyDetectionVec(ts_merged$interpolated_temperature, direction='both', period=8760, plot=TRUE)
# Display the Anomalies:
res$anoms
# Plot the Anomalies:
res$plot
Results
We can see, that the AnomalyDetection library has indeed identified the anomalies.
From the R Console we run:
> res$plot

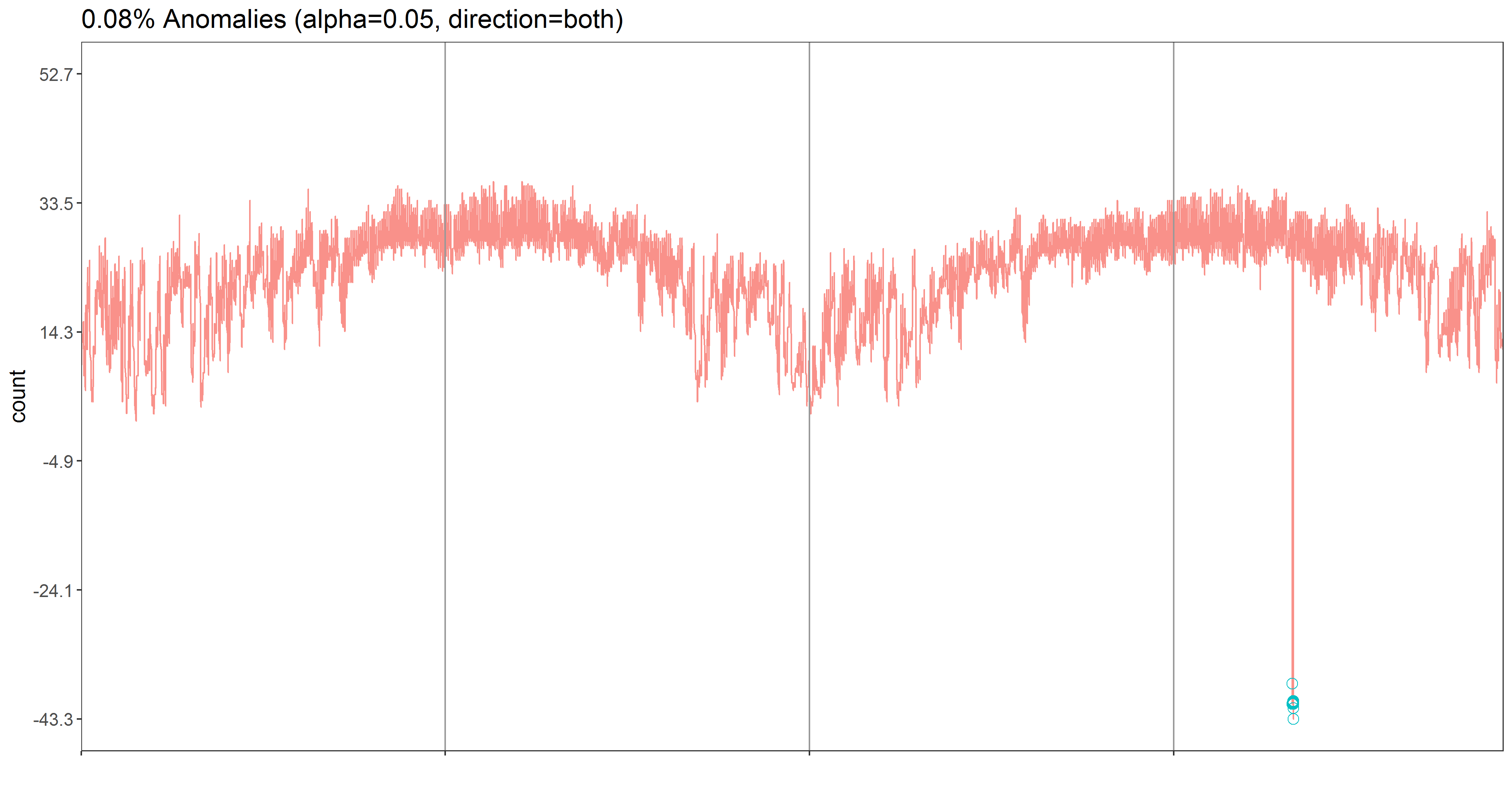

And we can see, that only the extreme outliers are identified:
> res$anoms
index anoms
1 29137 -38.05000
2 29138 -41.10000
3 29139 -41.07917
4 29140 -41.05833
5 29141 -41.03750
6 29142 -41.01667
7 29143 -40.99583
8 29144 -40.97500
9 29145 -40.95417
10 29146 -40.93333
11 29147 -40.91250
12 29148 -40.89167
13 29149 -40.87083
14 29150 -40.85000
15 29151 -40.82917
16 29152 -40.80833
17 29153 -40.78750
18 29154 -40.76667
19 29155 -40.74583
20 29156 -40.72500
21 29157 -40.70417
22 29158 -40.68333
23 29159 -40.66250
24 29160 -40.64167
25 29161 -40.62083
26 29162 -40.60000
27 29163 -41.10000
28 29164 -43.30000
29 29165 -41.70000
